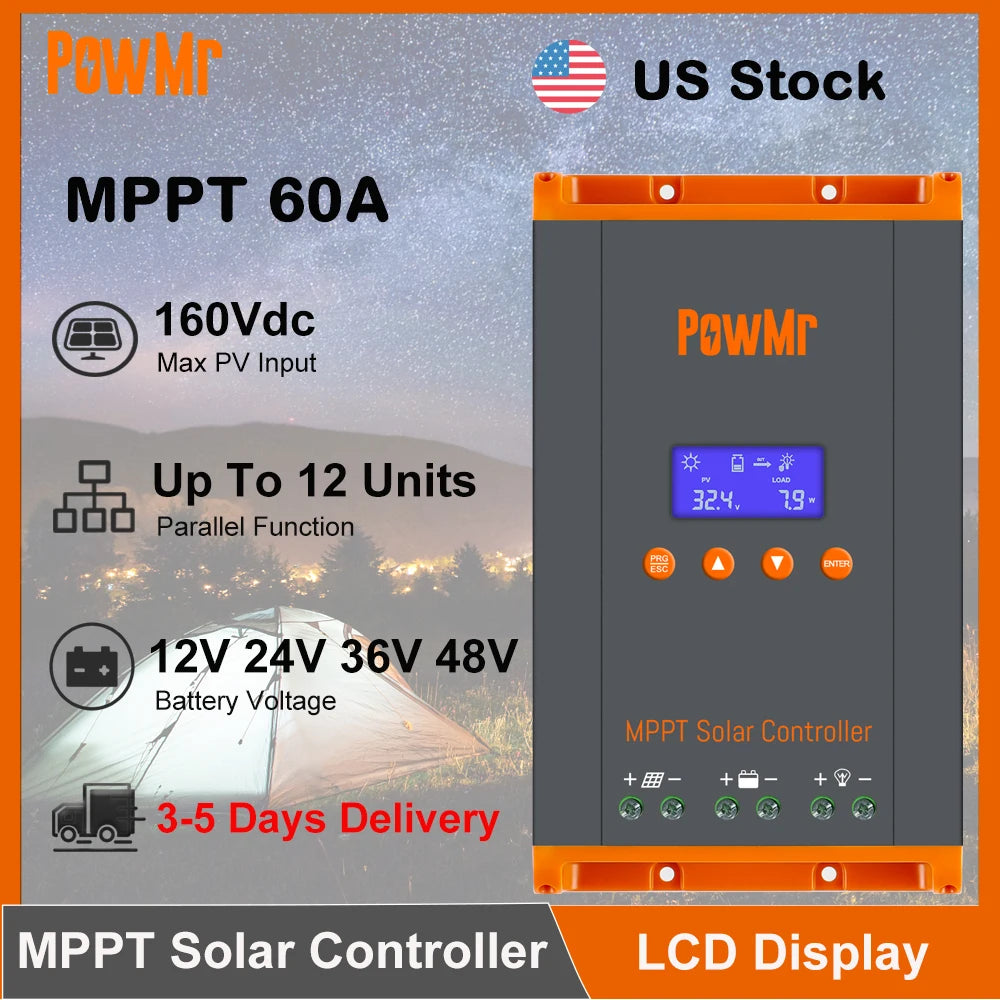

PowMr 60A MPPT Solar Charger Controller With LCD Display

PowMr 60A MPPT Solar Charger Controller With LCD Display

$120.99 USD
$0.00 USD $120.99 USD
Sale Sold out
Shipping calculated at checkout.
Current
Ships From

You capture maximum renewable energy and simplify off-grid expansion by installing this 60A MPPT solar charge controller, which automatically detects your 12V, 24V, 36V, or 48V array to optimize charging from day one.

  • Auto-adjust to your system voltage and scale input power up to 2800W on a 48V circuit without manual configuration.

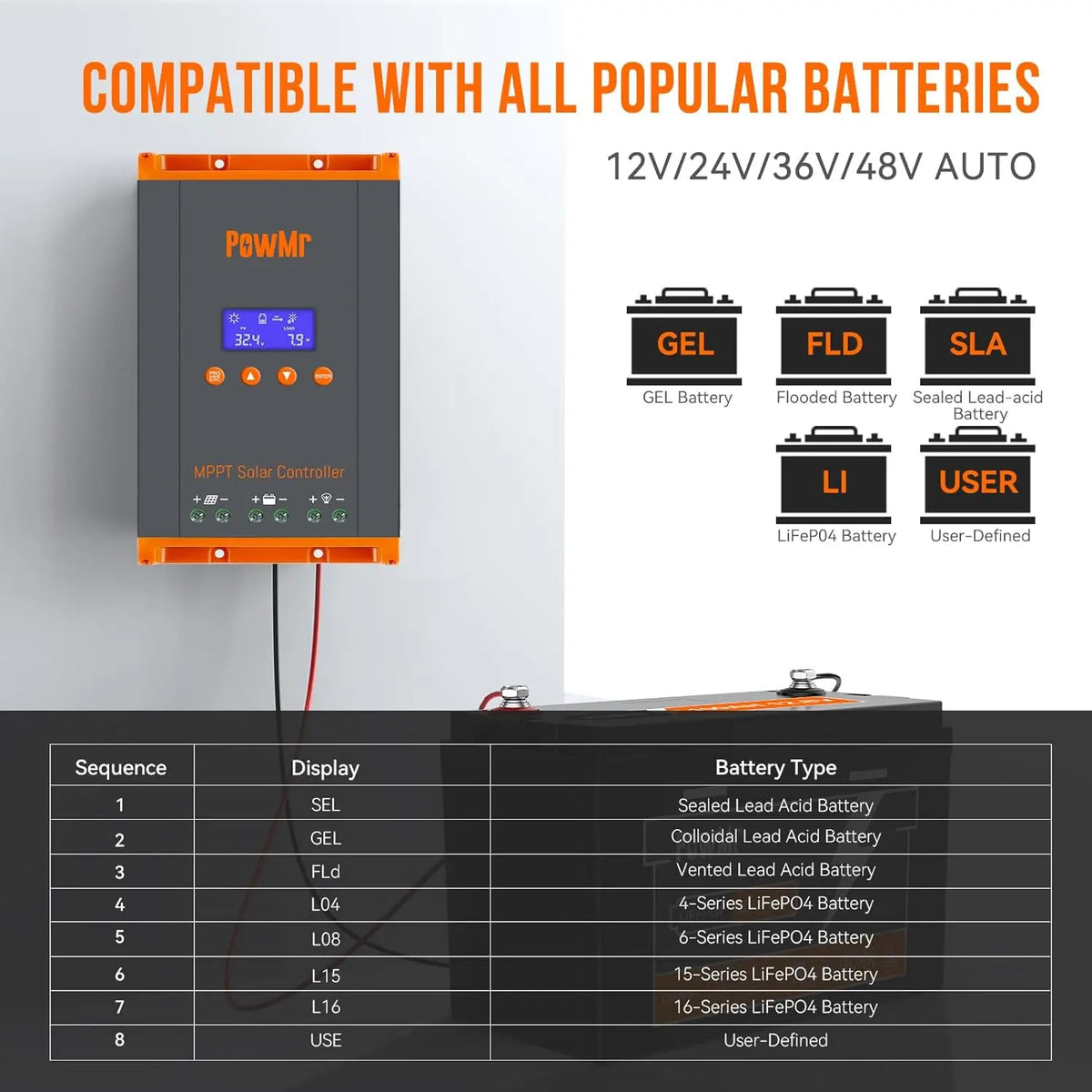

  • Protect your battery bank with ≥98.1% MPPT efficiency and a DSP algorithm tailored for both lead-acid and LiFePO4 chemistries.

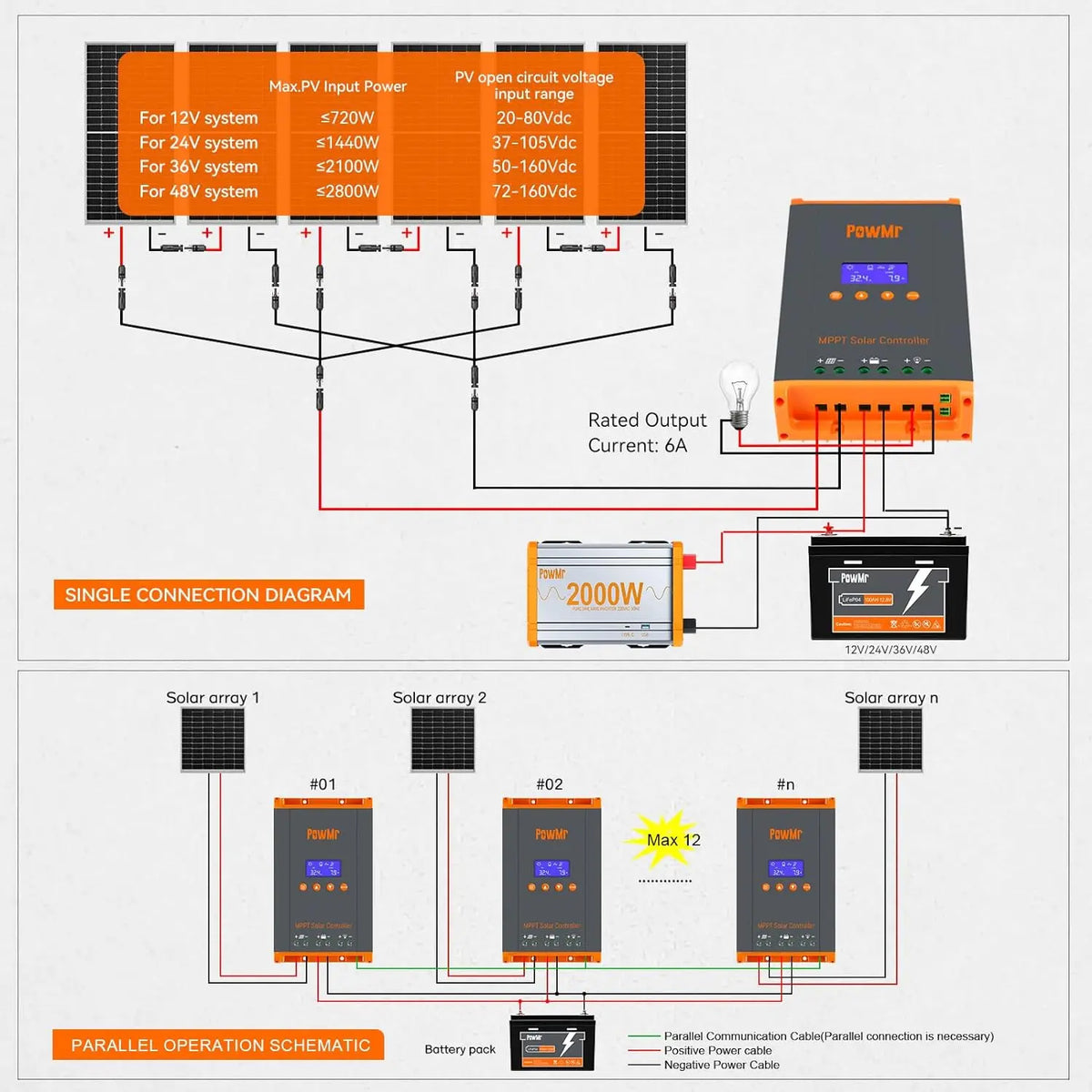

  • Connect up to 12 units in parallel for faster capacity growth, while you benefit from automatic fan engagement above 45℃.
  • Watch your system performance on the LCD and route your 6A DC load directly through the unit for dependable lighting control.
Models
HHJ60-PRO
Solar Input Parameters
Max. Solar Array Open-Circuit Voltage
160V
Maximum Input Power:
For 12V System
For 24V System
For 36V System
For 48V System
720W
1440W
2100W
2800W
Input Voltage Range:
For 12V System
For 24V System
For 36V System
For 48V System
20V~80V
37V~105V
50V~160V
72V~160V
Battery Charging Parameters
Charging Technology
MPPT

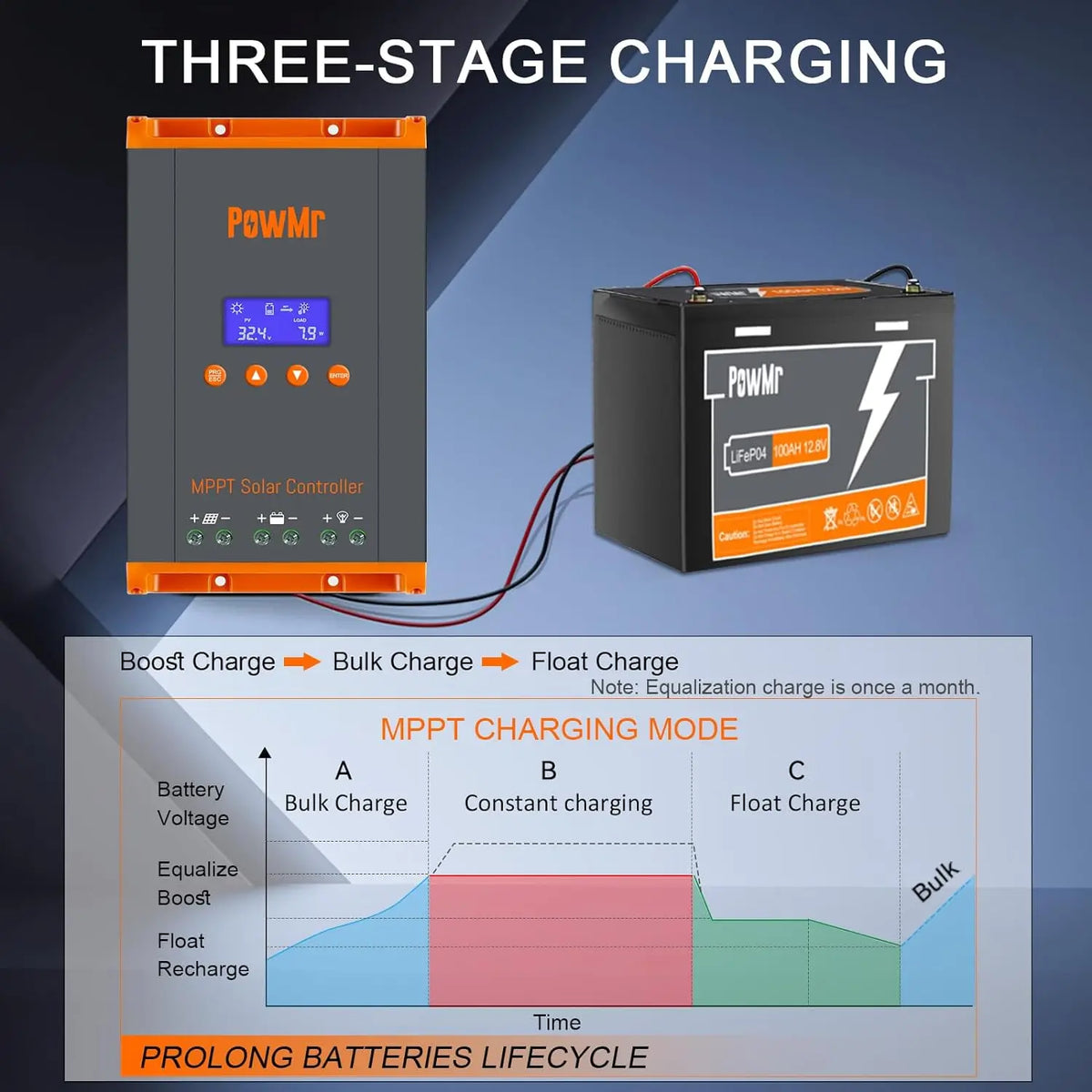

Charging Algorithm
3 stages
Battery Voltage Auto-Detection
12V System
24V System
36V System
48V System
DC9V~DC15V
DC18V~DC29V
DC30V~DC39V
DC40V~DC60V
Overcharge Protection Voltage
60V
Charging Limit Current
61A
Maximum Efficiency
≥98. 1%
Solar Utilization Rate
≥99%
Load Terminal Output
Rated Output Current
6A
Maximum DC Output Current
8A

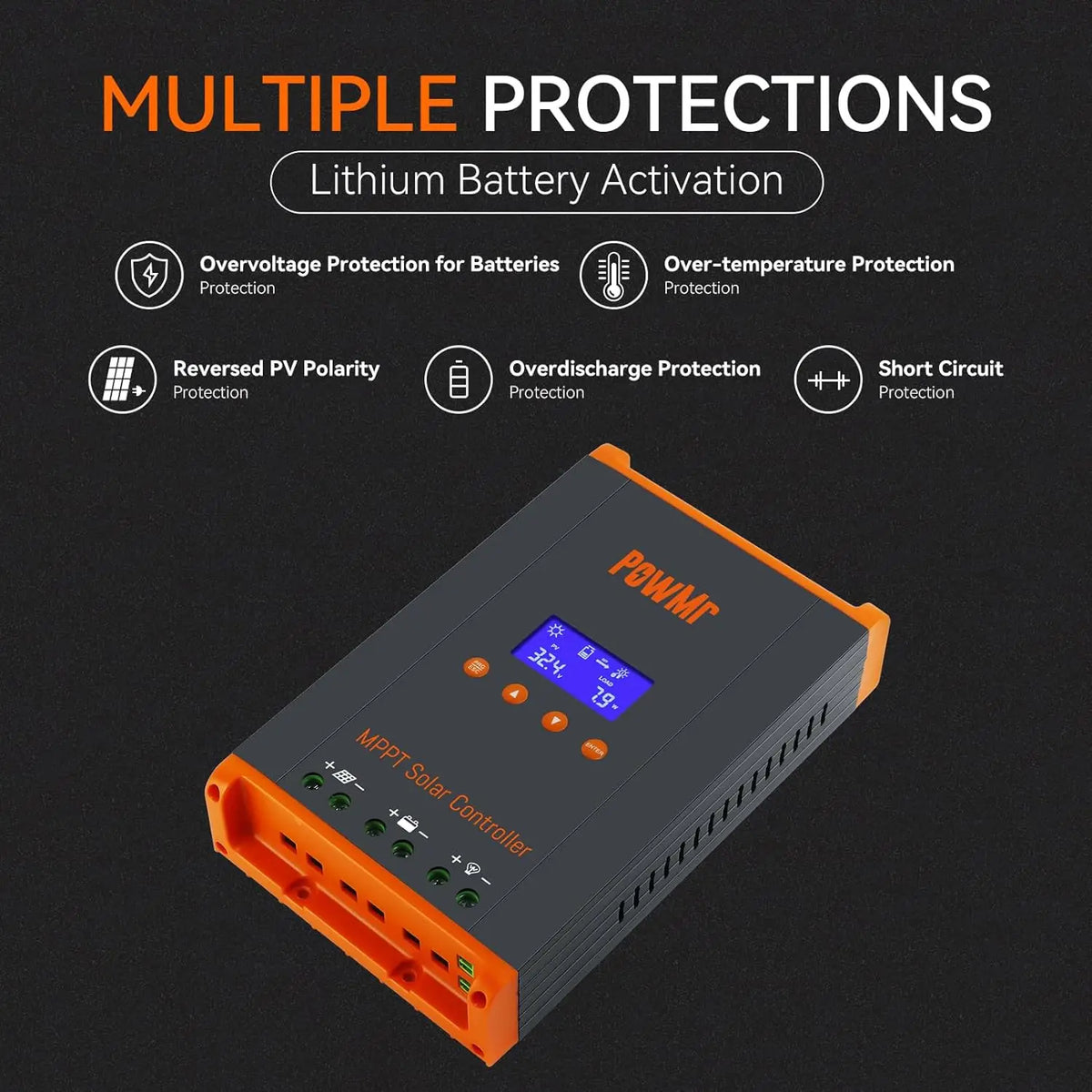

Protection
Temperature Protection
75℃ / 167 ℉

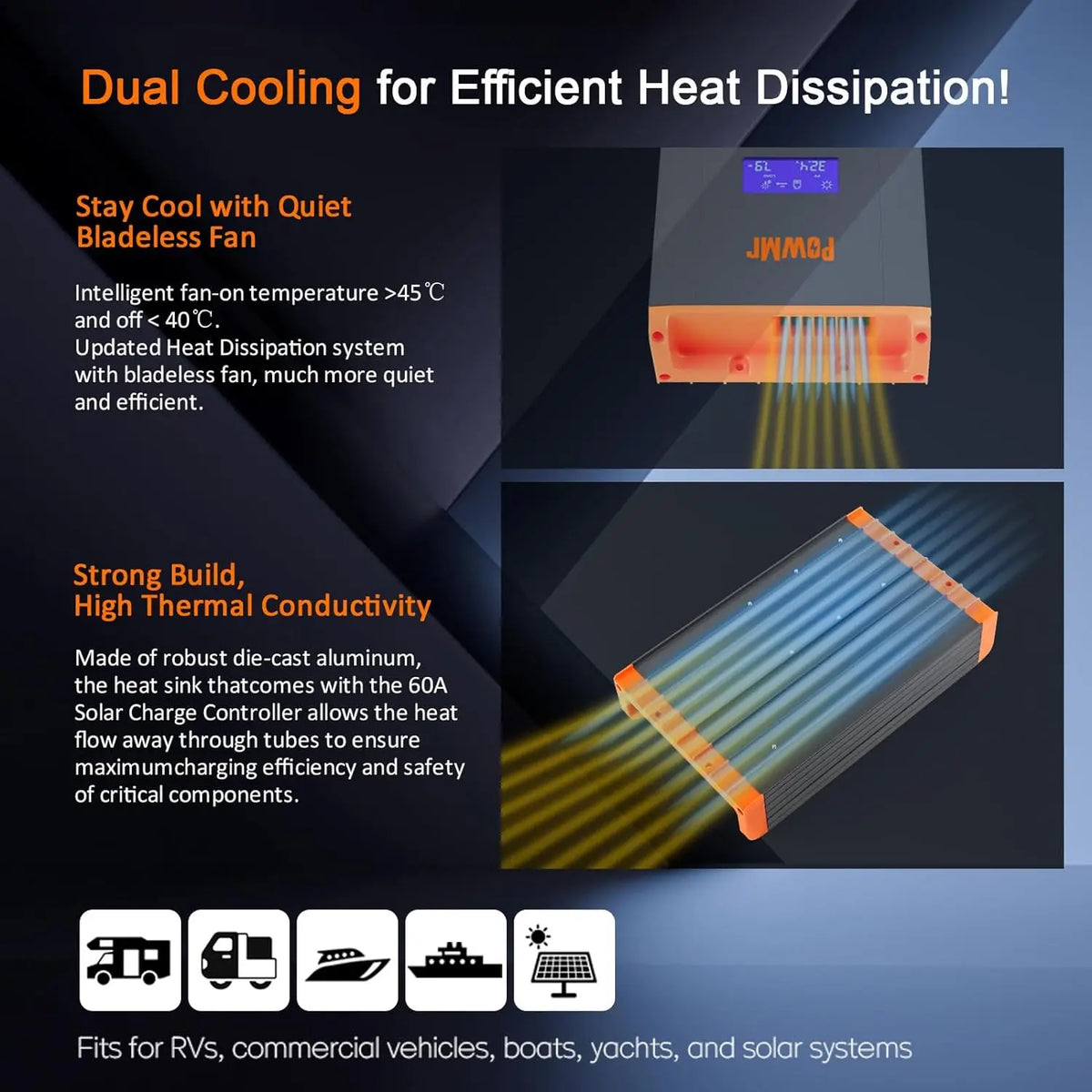

Fan Start Temperature
>45℃ / 104℉
Fan Shutdown Temperature
<40℃ / 95℉
General Specification
Electromagnetic Compatibility
EN61000, EN55022, EN55024
Protection Level
IP21
Operating Temperature
-20℃ ~ +55℃ / -4℉ ~ 131℉
Storage Temperature
-40℃ ~ +75℃ / -40℉ ~ 167℉
