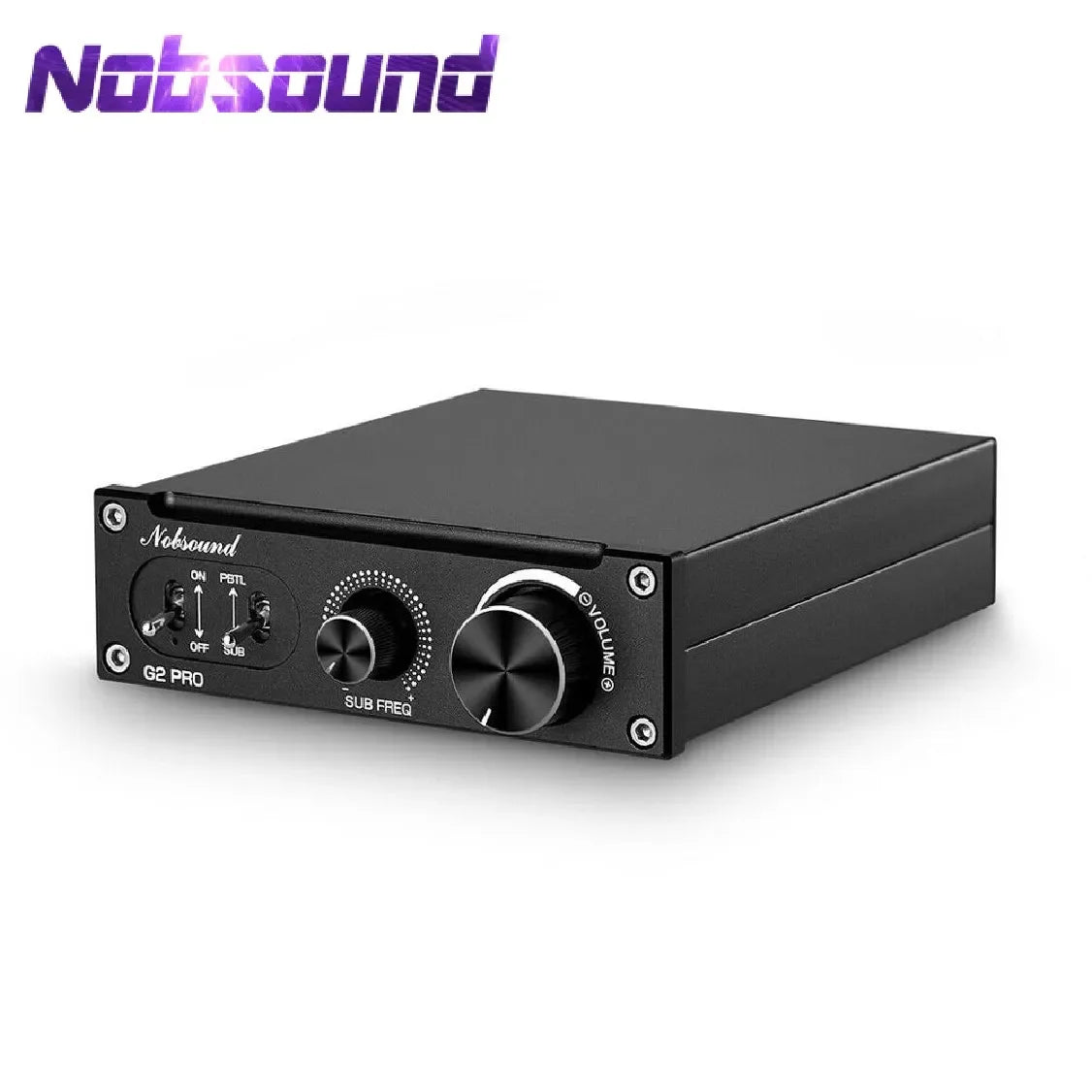

Nobsound Hi-Fi G2 Mono Channel Digital Amp Subwoofer / Full-Frequency Mini Stereo Audio Home Desktop Power Amplifier 100W

$70.99 USD

~~$0.00 USD~~ $70.99 USD

Sale Sold out

Shipping calculated at checkout.

Ships From United States

SPECIFICATIONS

Brand Name: Douk Audio

Certification: CE

Channels: 1

DOUK AUDIO Model: G2

Maximum Power Per Channel: Above 200W

Model Number: G2

Origin: Mainland China

Package: Yes

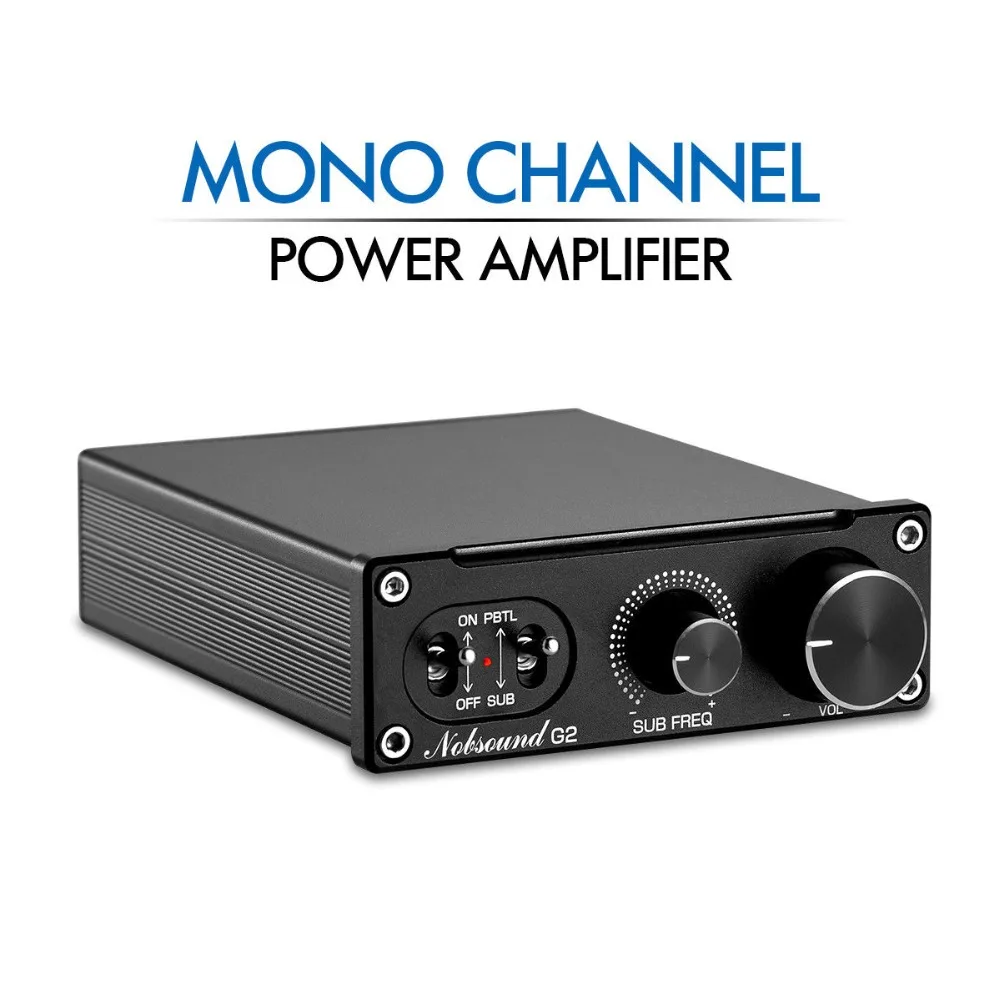

Nobsound G2 Subwoofer / Full-Frequency Mono Channel Digital Power Amplifier 100W

Features

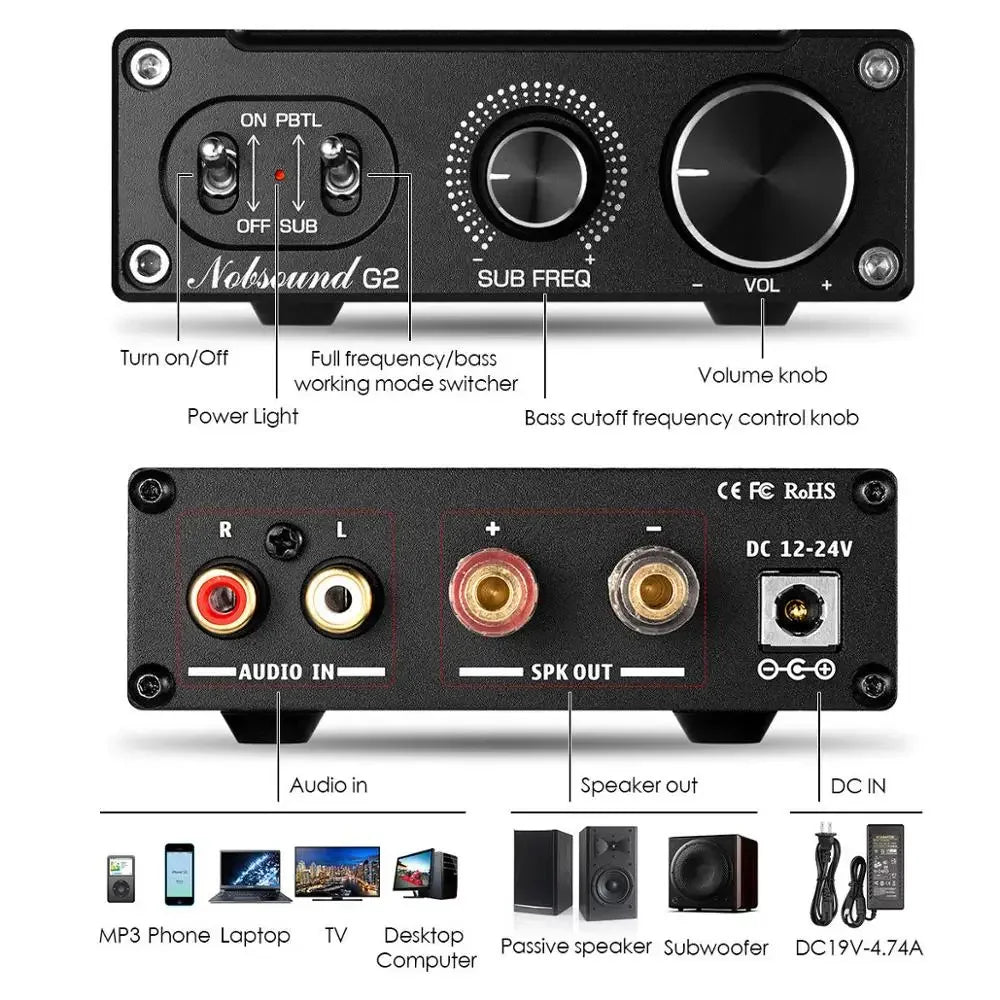

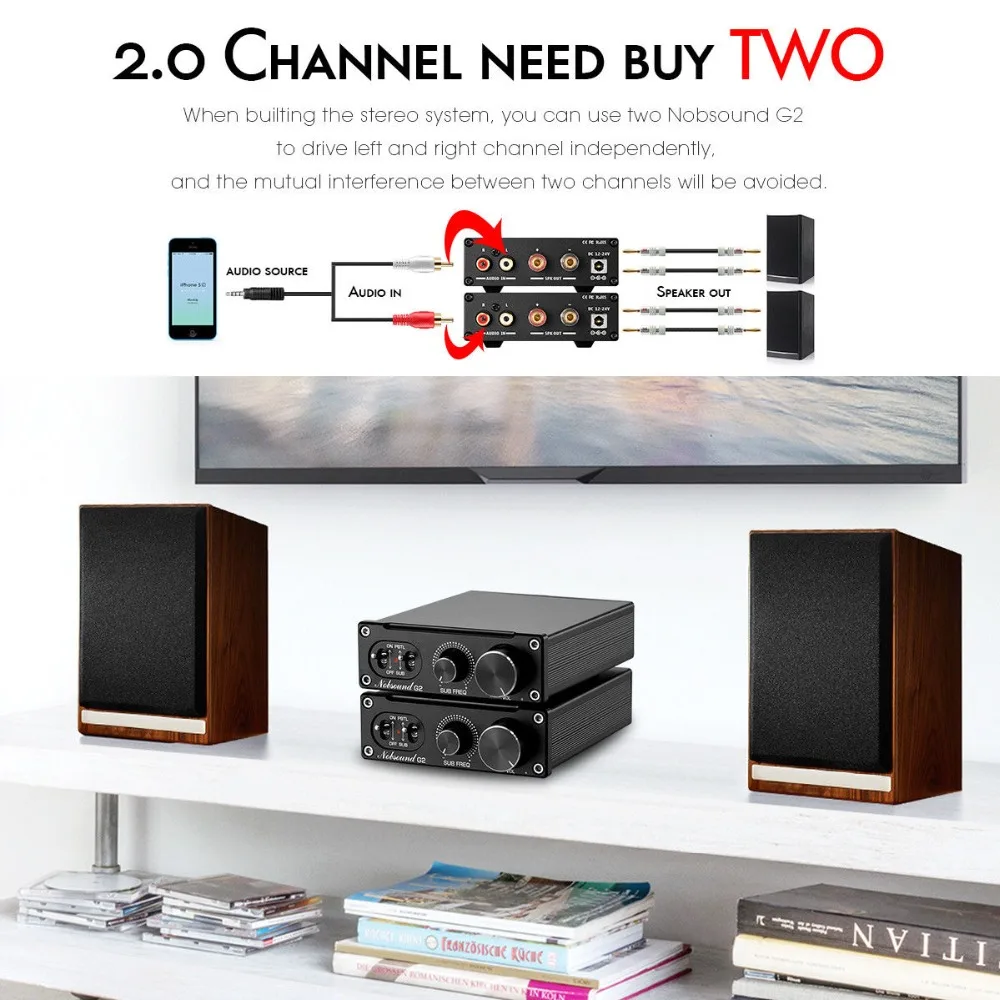

A WORKING MODE SWITCHER: convenient to use it as subwoofer bass amplifier or full frequency amp, and you can use two Nobsound G2 to drive left and right channel independently, and the mutual interference between the channels is suppressed.

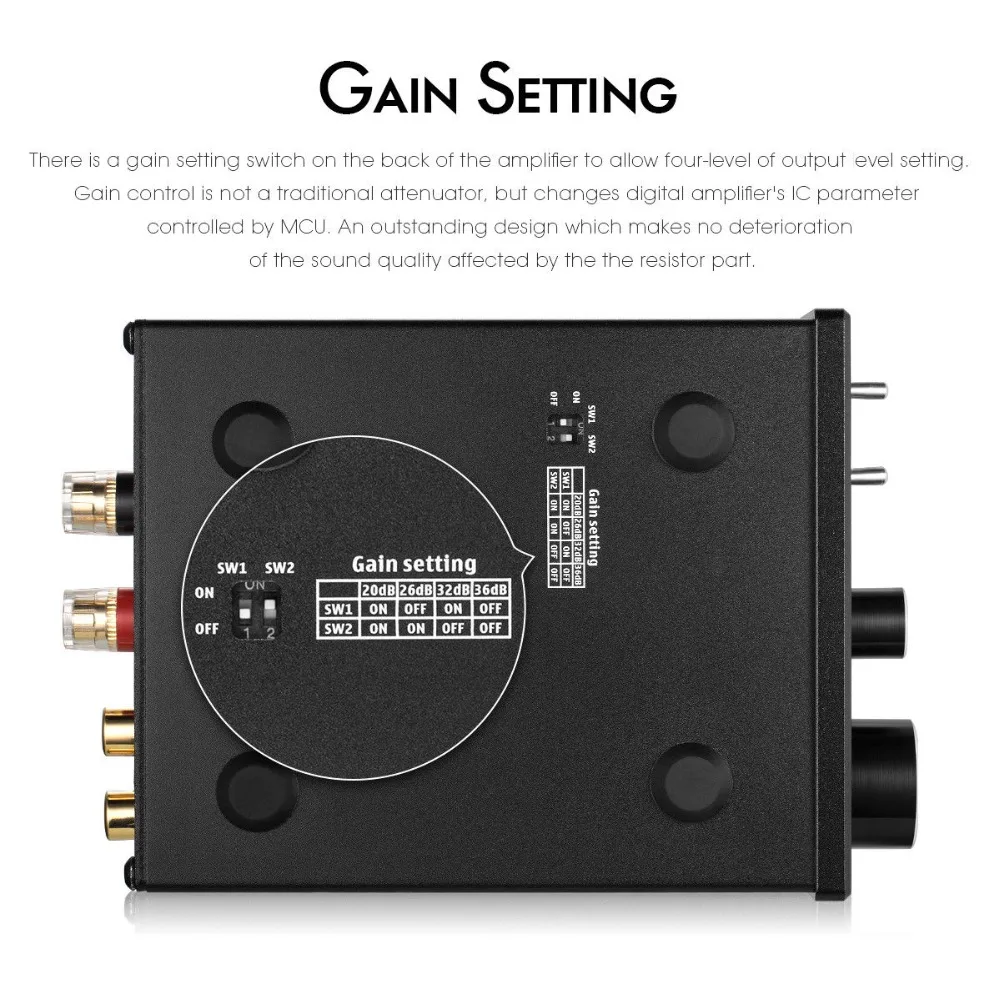

GAIN CONTROL: a gain switch on the bottom of the amplifier to allow 4-level of output level setting (20/26/32/36 dB), to keep the sound quality better and not affected by the the resistor part.

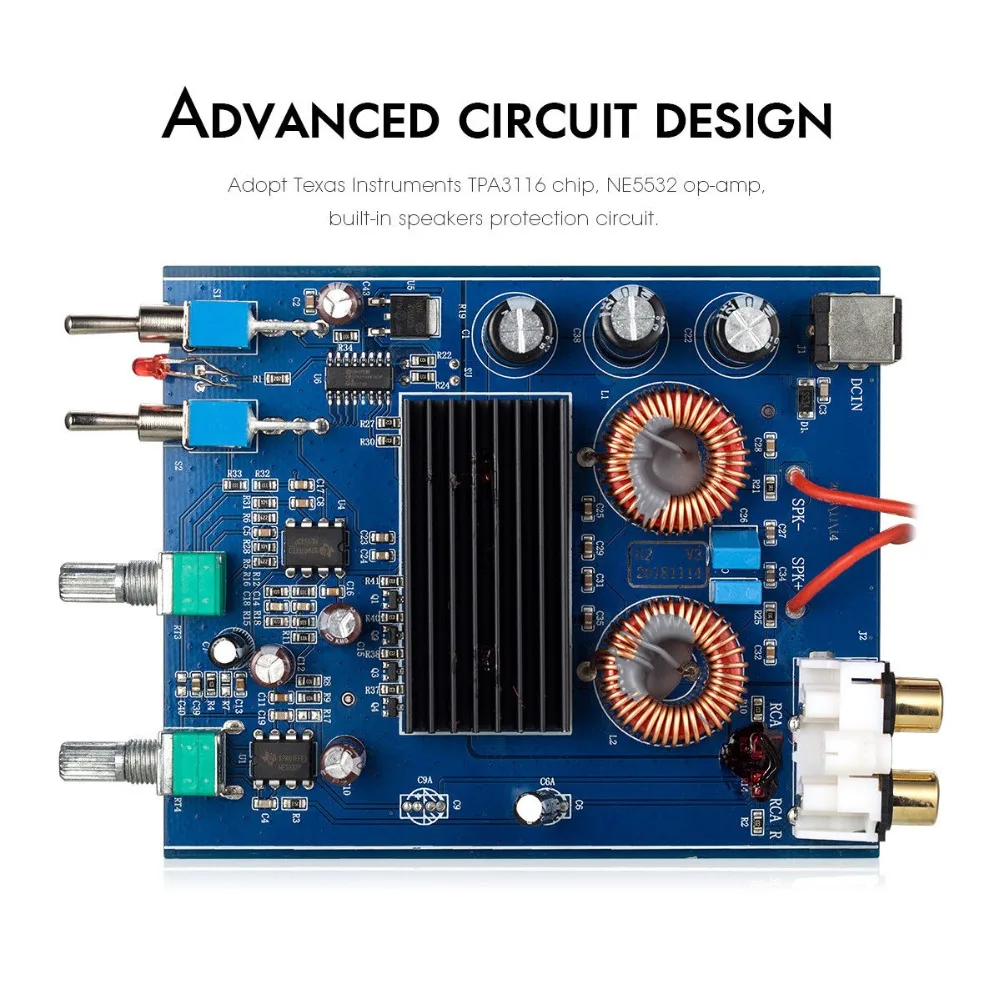

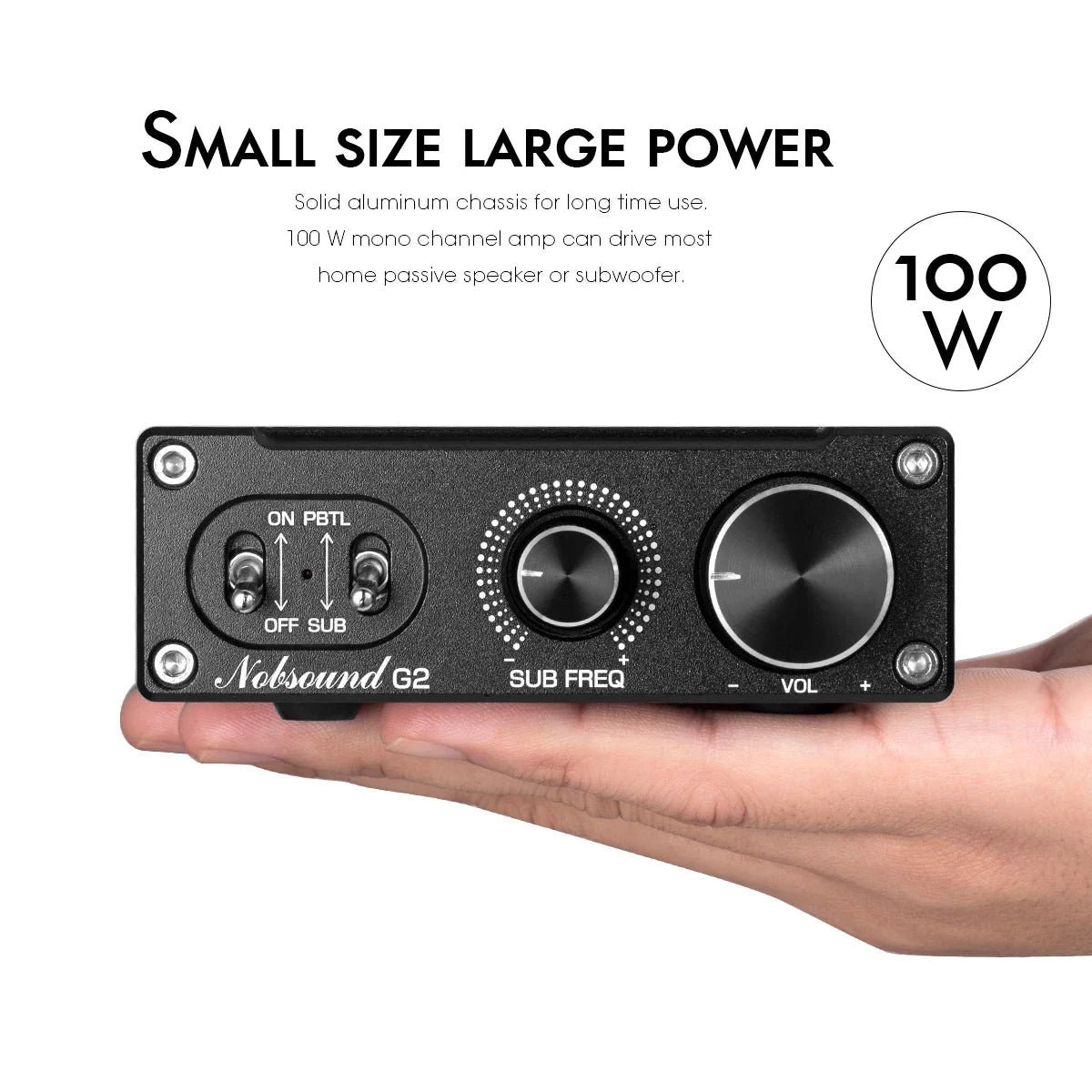

HIGH-END MATERIALS AND LARGE POWER: Texas Instruments TPA3116 chip, NE5532 op-amp to guarantee no audible noise, 100Wx 1 @4ohm mono channel amp can drive most home passive speaker or subwoofer, bringing HiFi listening experience.

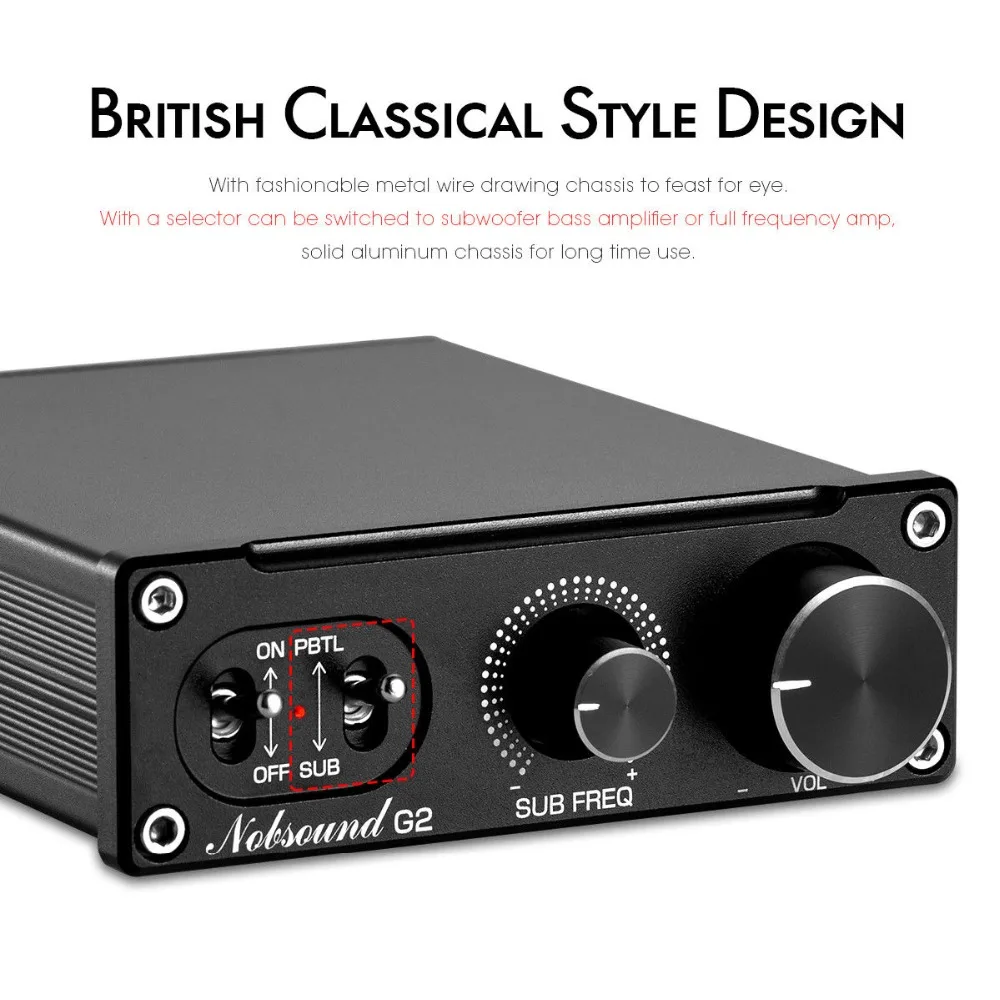

EXCELLENT CORCUIT AND APPEARANCE DESGIN: built-in speakers protection circuit, solid aluminum chassis for long time use; built-in low pass filter for subwoofers with sub frequency control, small simple compact design but practical and powerful.

Specification

Max Power	100W*1 4Ω	Full frequency response	20Hz-20kHz(±3dB)
The speaker matches the impedance	4-8Ω	THD	Output 1W@ 0.03%
Working Voltage	DC12-24V	SNR	≥106dB

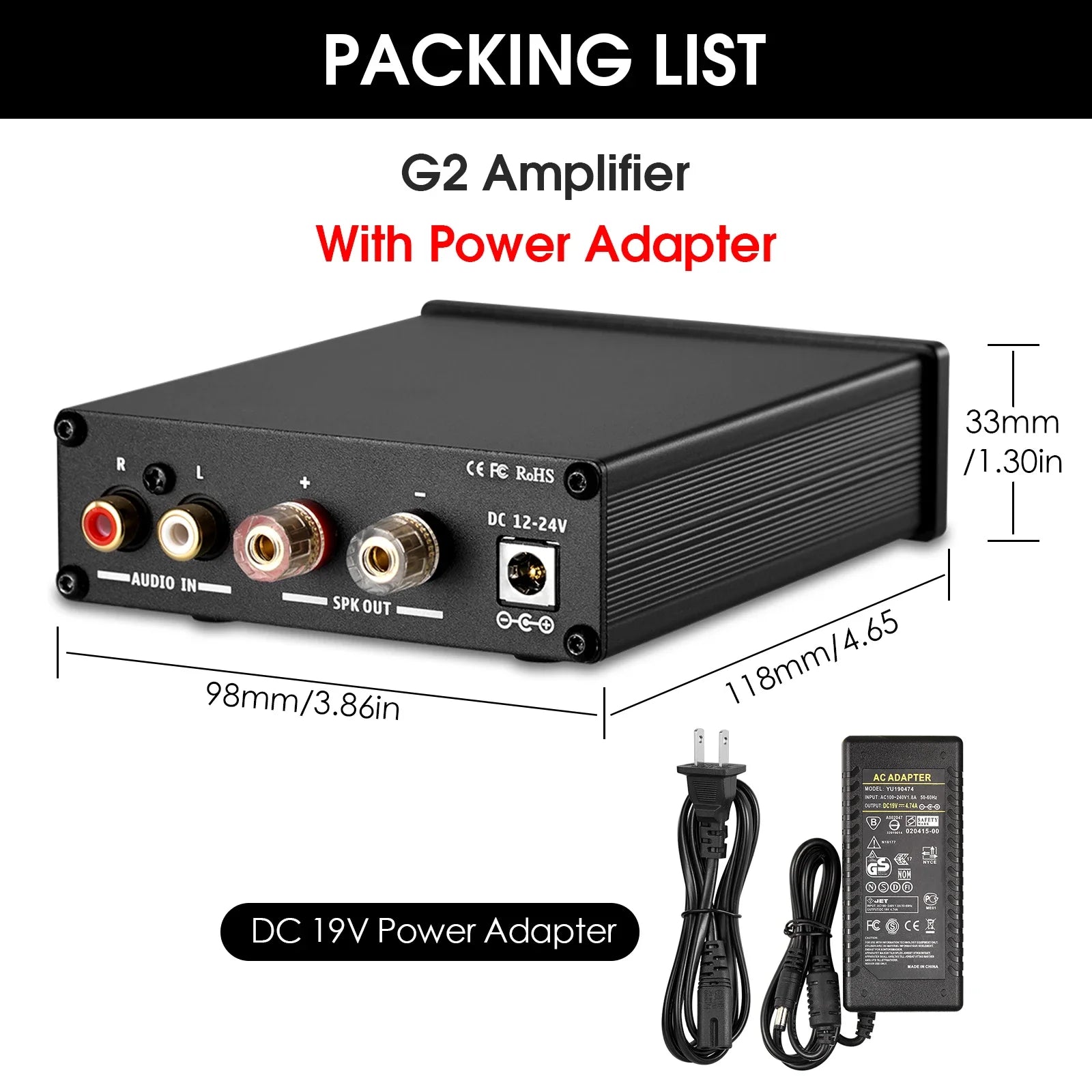

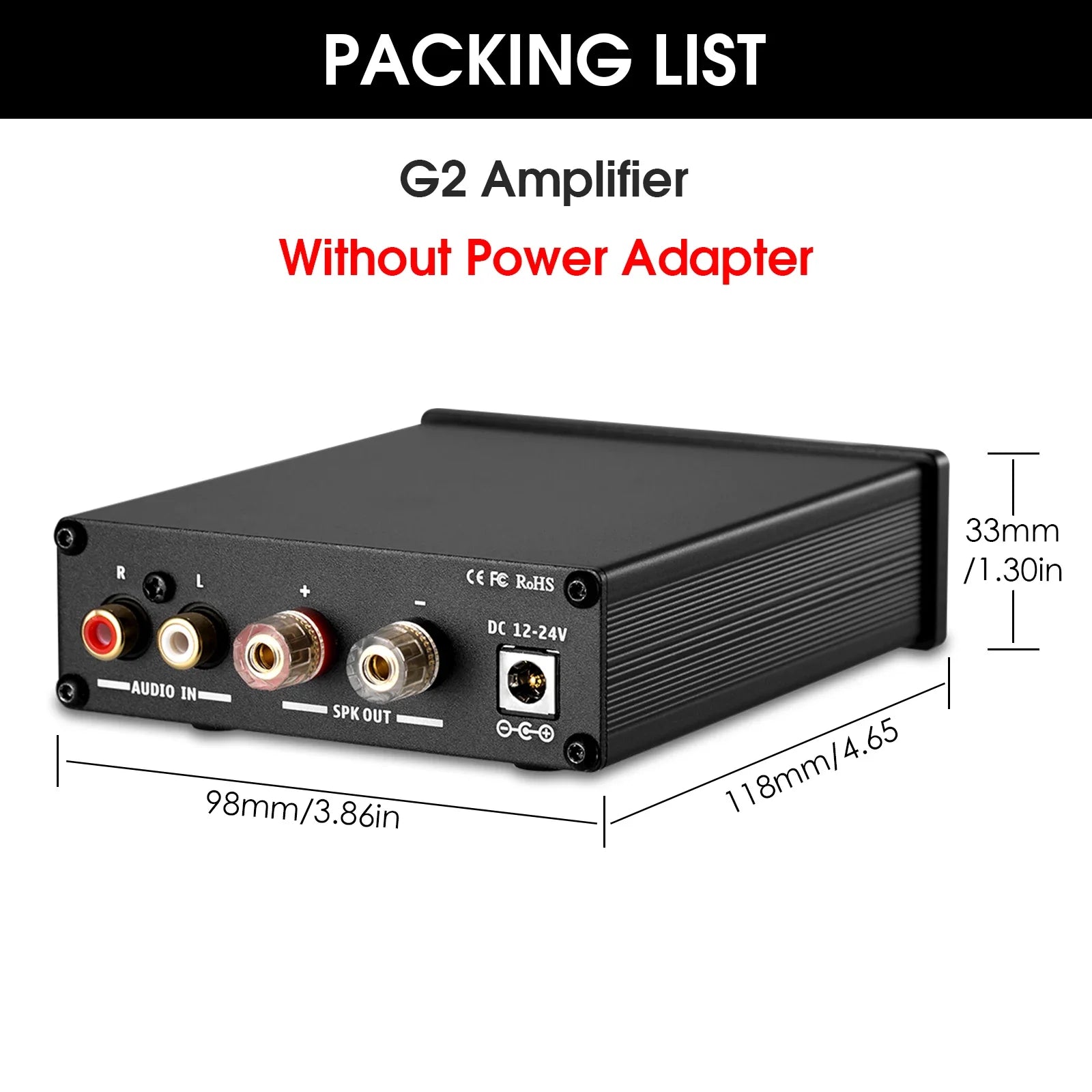

Input sensitivity	0.2mV	Dimension	D118.5W98H33MM
Bass cutoff frequency range adjustment	40-300Hz	Weight	0.36KG
Slope of bass attenuation	-12dB Slope	Package Size	D257W215H65MM
