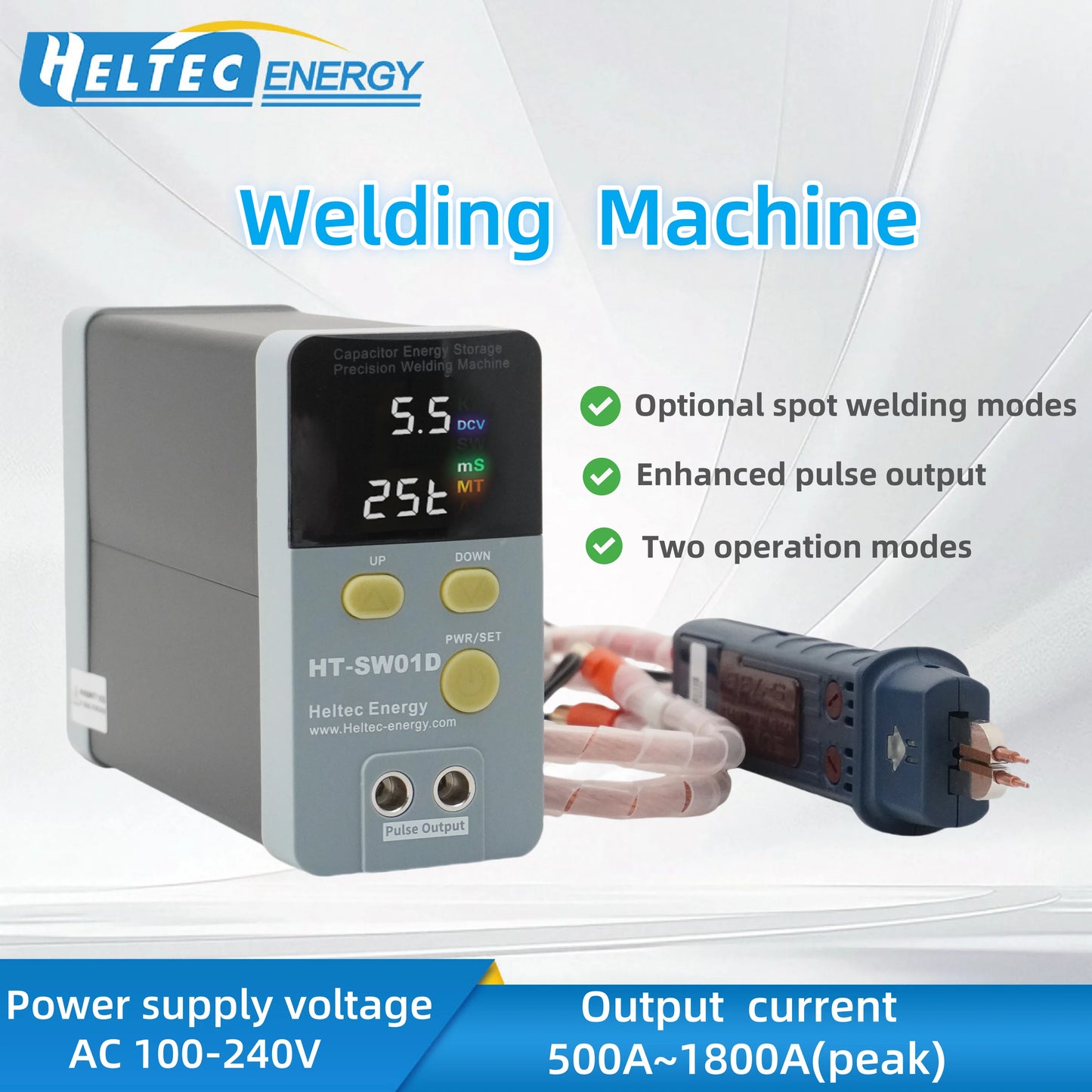

HT-SW01D 12KW Capacitor Energy Storage Pulse Welding Machine/Portable Small /High Current Pulse Spot Welder LED Digital Display
HT-SW01D 12KW Capacitor Energy Storage Pulse Welding Machine/Portable Small /High Current Pulse Spot Welder LED Digital Display
Couldn't load pickup availability
SPECIFICATIONS
Brand Name: XPGTool
Certification: CE
Charging time: 30 ~ 40 minutes
Digital display: color screen display
High-concerned chemical: None
Model: glitter 801B
Model Number: HT-SW01D
Origin: Mainland China

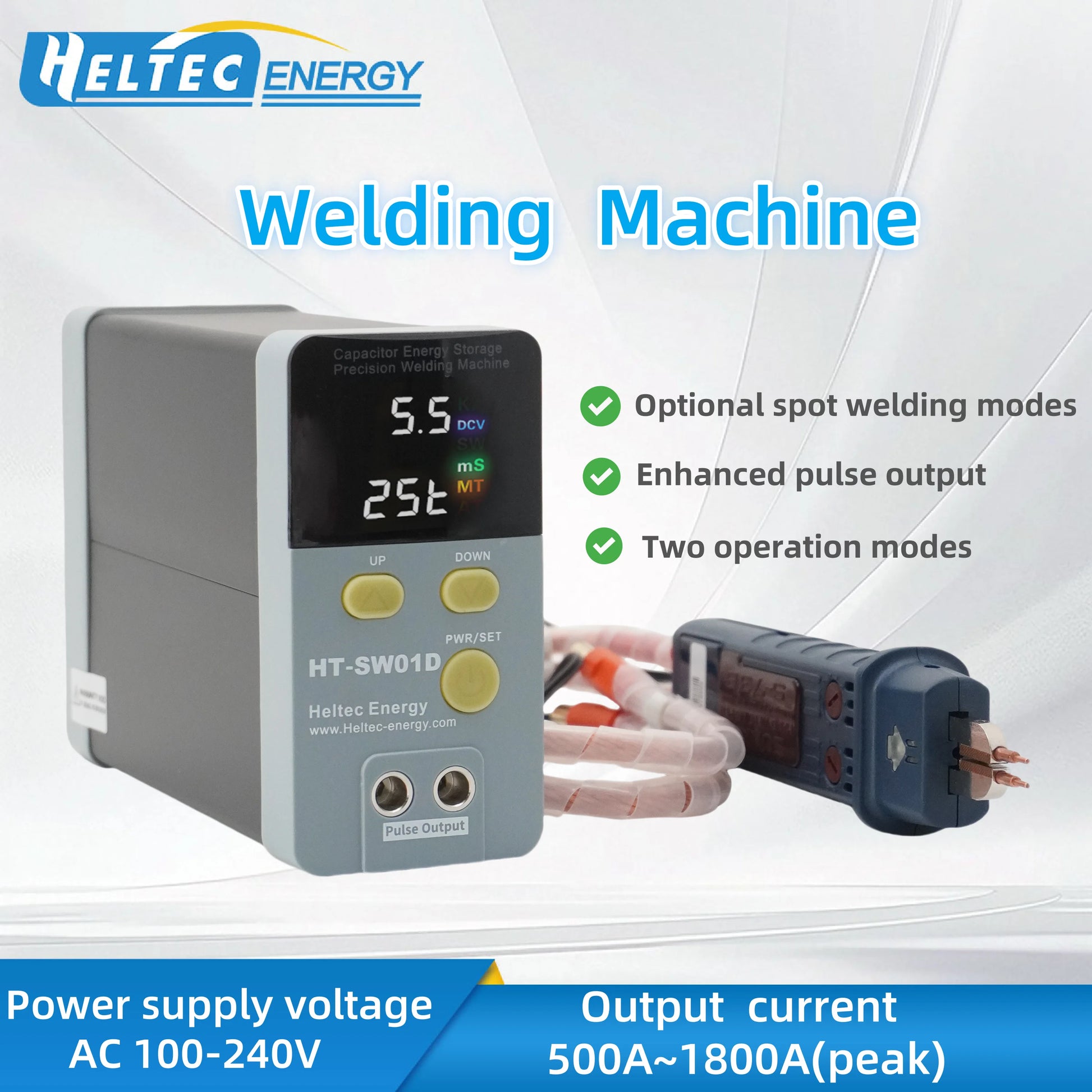

Output current: 500A ~ 1800A (peak)
Output voltage: 5.0V ~ 5.8v (peak)
Power supply voltage: AC 100-240V 50 / 60Hz
Size: 65 * 162 * 128.5mm

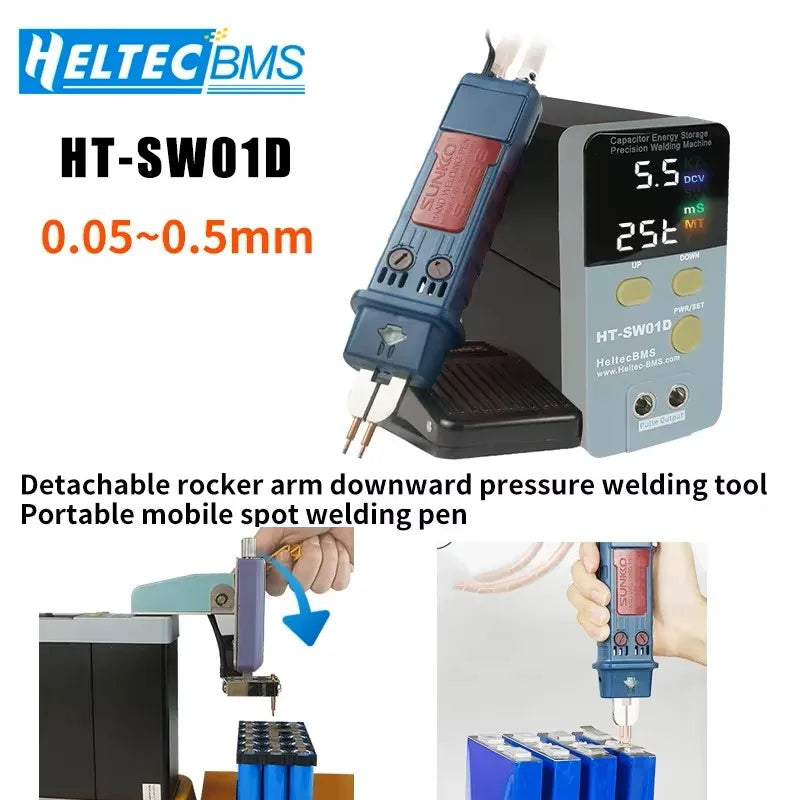

Spot welding mode: fixed head spot welding / mobile spot welding
Spot welding power: 9900w (peak)
Trigger mode: Auto trigger at / foot trigger MT
Weight: 3.34kg,3kg
Welding parameters: 0 ~ 99
Note:
Our brand power supply has some stock in the BR/MX/PL/ES/US/RU warehouse. lf youcannot see the option to ship from the overseas warehouse, you can follow the steps in thepicture to select the option to ship from the overseas warehouse, (We will automaticallyequip the corresponding power cord according to your country, Please don't worry)
Product Introduction
|
HT - SW01D |
Spot Welding Principle |
DC Function |
Output Power |
14.5W |
Output Current |
2500A (Max) |
Standard Welding Tool |
1. 1.78 (16mm²) integrated spot welder |
Pure Nickel Welding |
18650 Ni - MH: 0.1 - 0.3mm |
Stainless Steel Wire Welding |
0.15 - 0.4mm |
Copper - Nickel Welding |
/ |
Copper - Aluminum Wire Welding, Copper - Aluminum |
/ |
Copper - Aluminum Composite Sheet Welding |
/ |
Copper - Aluminum Foil Wire Welding |
/ |
Negative Electrode (Direct Welding of Lithium) |
/ |
Power Supply Voltage |
AC 110 - 220V (Universal) |
Output Voltage |
DC 6.0V (Max) |
Rated Charging Current |
4 - 5A (Max) |
First Charging Time |
30 - 40 minutes |
Trigger Mode |
AT: Automatic Induction Trigger |
Equal Arm Resistance / External Resistance |
Full Welding |
Test Voltage |
x |
