Anern 48V 4200W Hybrid Solar Inverter With MPPT Controller
Anern 48V 4200W Hybrid Solar Inverter With MPPT Controller
Couldn't load pickup availability
You manage reliable hybrid power by drawing energy directly from your solar array without needing a battery bank to start first.
- You capture up to 6200W of sunlight using the integrated 120A MPPT controller, which automatically wakes lithium packs and balances charge rates.
- You run sensitive equipment safely on a pure sine wave that holds steady at 230Vac±5% while maintaining peak efficiency above 93%.
- You monitor live system output wirelessly, since the module includes native Wi-Fi for direct iOS and Android dashboard access.
- You save dedicated wall mounting space with a compact 110×334×423mm frame and reinforced casing built to withstand harsh climates.
NVERTER MODEL |
SCI-ECO-4.2KW |
SCI-ECO-6.2KW |
Inverter Mode Specifications | ||
Rated Output Power |
4.2KW |
6.2KW |
Output Voltage Waveform |
Pure Sine Wave |
|
Output Voltage Regulation |
230Vac±5% |
|
Output Frequency |
50Hz |
|
Peak Efficiency |
93% |
|
Overload Protection |
3s@≥150%load; 5s@101%~150% load |
|
Surge Capacity |
2* rated power for 5 seconds |
|
Nominal DC Input Voltage |
24Vdc |
48Vdc |
Cold Start Voltage |
23.0Vdc |
46.0Vdc |
No Load Power Consumption |
35W |
50W |
Two Load Output Power | ||
Full Load |
4200W |
6200W |
Maximum Main Load |
4200W |
6200W |
Maximum Second Load(battery model) |
1400W |
2066W |
Main Load Cut Off Voltage |
22VDC |
44VDC |
Main Load Return Voltage |
26VDC |
52VDC |
Charge Mode Specifications | ||
Utility Charging Mode | ||
Charging Algorithm |
3-Step |
|
AC Charging Current (Max) |
100Amp |
|
Floating Charging Voltage |
27Vdc |
54Vdc |
MPPT Solar Charging Mode | ||
Max. PV Array Power |
6200W |
6500W |
Nominal PV Voltage |
240Vdc |
360Vdc |
PV Array MPPT Voltage Range |
60Vdc~500Vdc |
|
Max. PV Array Open Circuit Voltage |
500Vdc |
|
Max Charging Current |
120Amp |
|
Grid-Tie Operation | ||
Nominal Output Voltage |
220/230/240 VAC |
|
Feed-in Grid Voltage Range |
195~253VAC |
|
Feed-in Grid Frequency Range |
||
Nominal Output Current |
18.2A |
26.9A |
Power Factor Range |
>0.99 |
|
Maximum Conversion Efficiency (DC/AC) |
97% |
|
General Specifications | ||
Safety Certification |
CE |
|
Operating Temperature Range |
–10°C - 50°C |
|
Storage temperature |
–15°C - 60°C |
|
Humidity |
5% to 95% Relative Humidity (Non-condensing) |
|

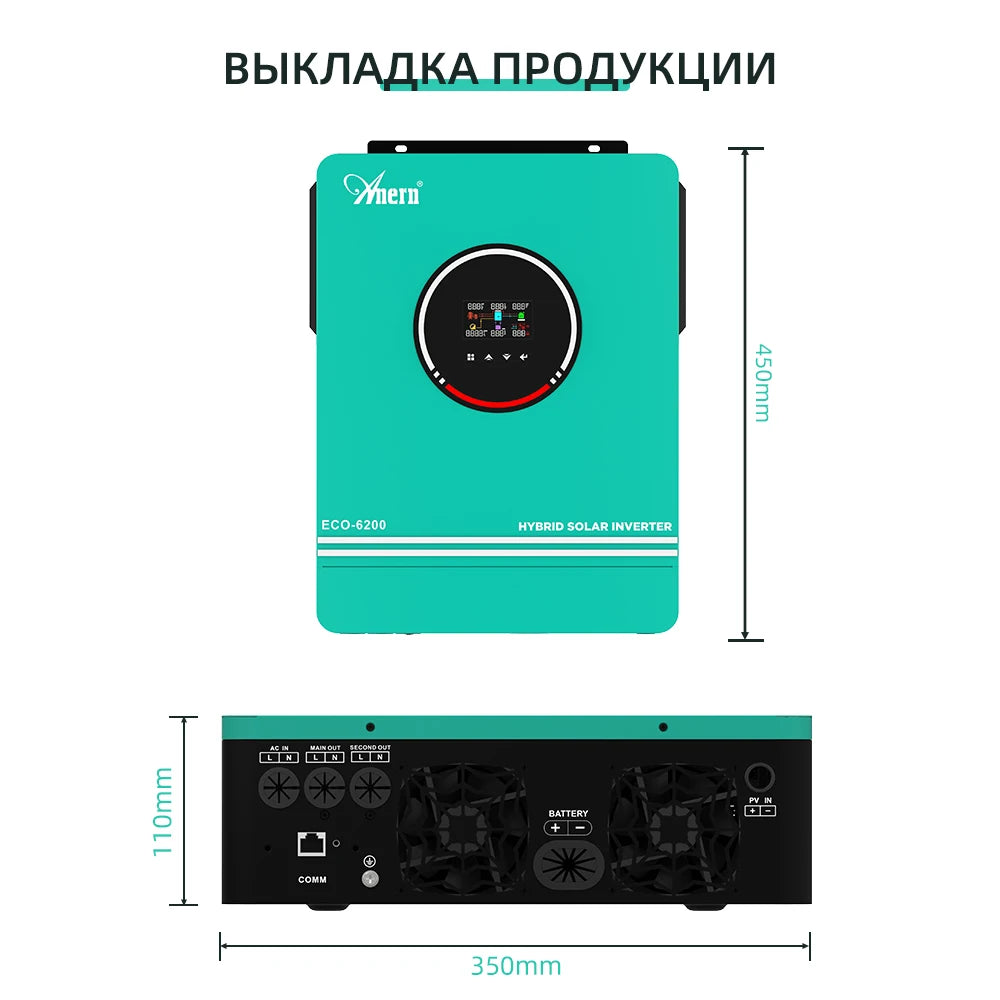

Dimension, D x W x H (mm) |
110*334*423 |
|
Net Weight (kgs) |
9.5 |
10 |
