SPECIFICATIONS

Brand Name: AlgoLaser

Certification: CE,ce

Engraving Area: 400x400mm,400x415mm

Engraving speed: 20000mm/min

Extended size: 400x850mm

High-concerned chemical: None

Is Smart Device: Yes

Laser Power: 20w

Laser Wavelength: 450±5nm

Light Spot: 0.15*0.12mm

Model Number: Alpha MK2

Net Weight: 7.8kg

Origin: Mainland China

Product Size: 692*585*200mm

Service Life of Laser Module: ≥ 10000 hours

Software: LightBurn, LaserGRBL, AlgoLaser APP

Support Systems: Android / iOS / iPad / Windows /MacOS

Supported Formats: jpg, svg, png, bmp, G-code, CAD, Al, CDR, dwg, etc.

TF card: Support (built-in 32GB)

Touch Screen: 3.5 inch

Type: Laser Engraver Machine

U disk: Support

USB port: Support (USB Type-C Type-A)

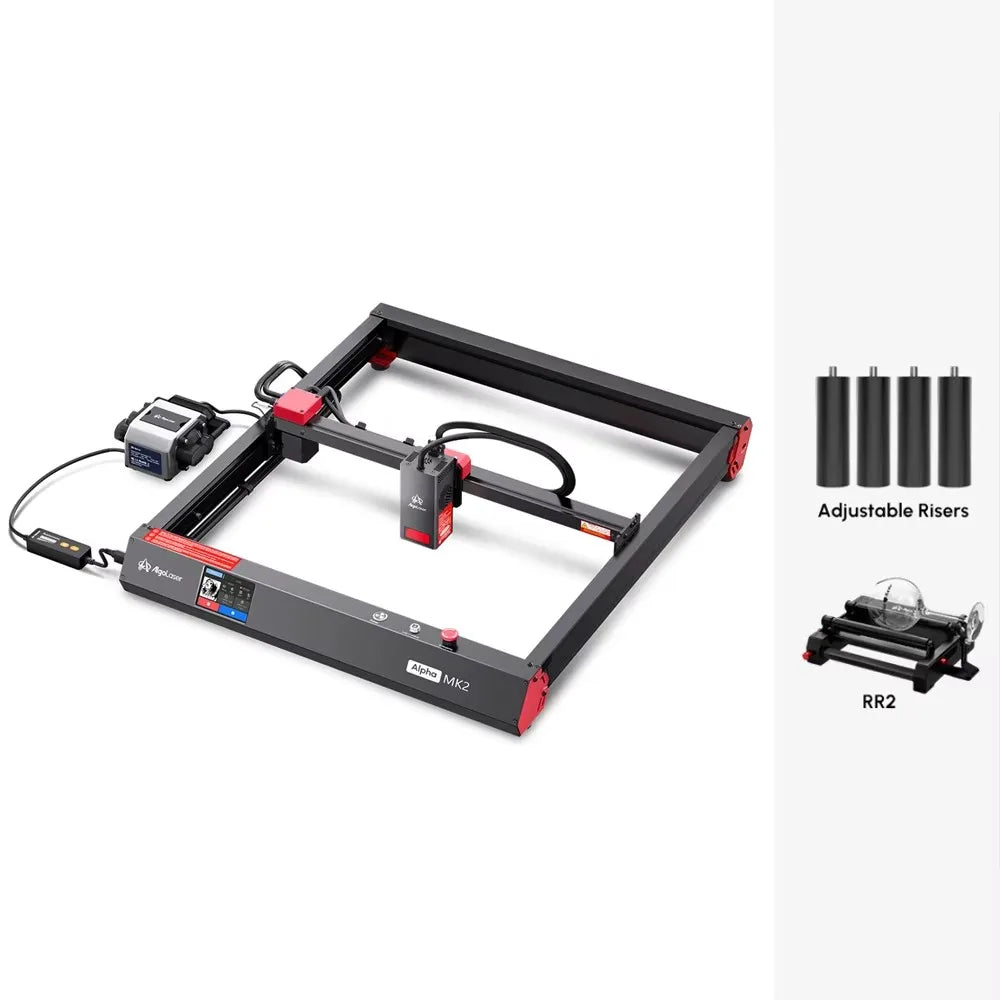

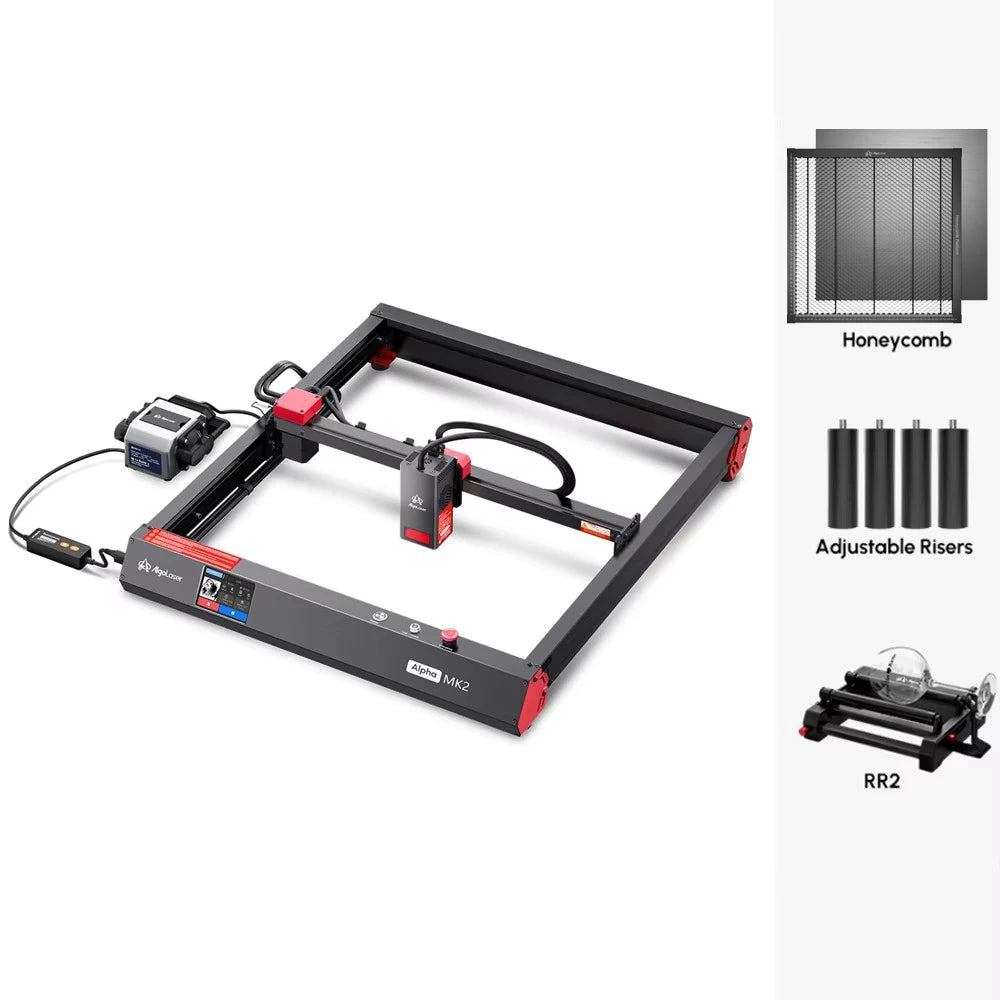

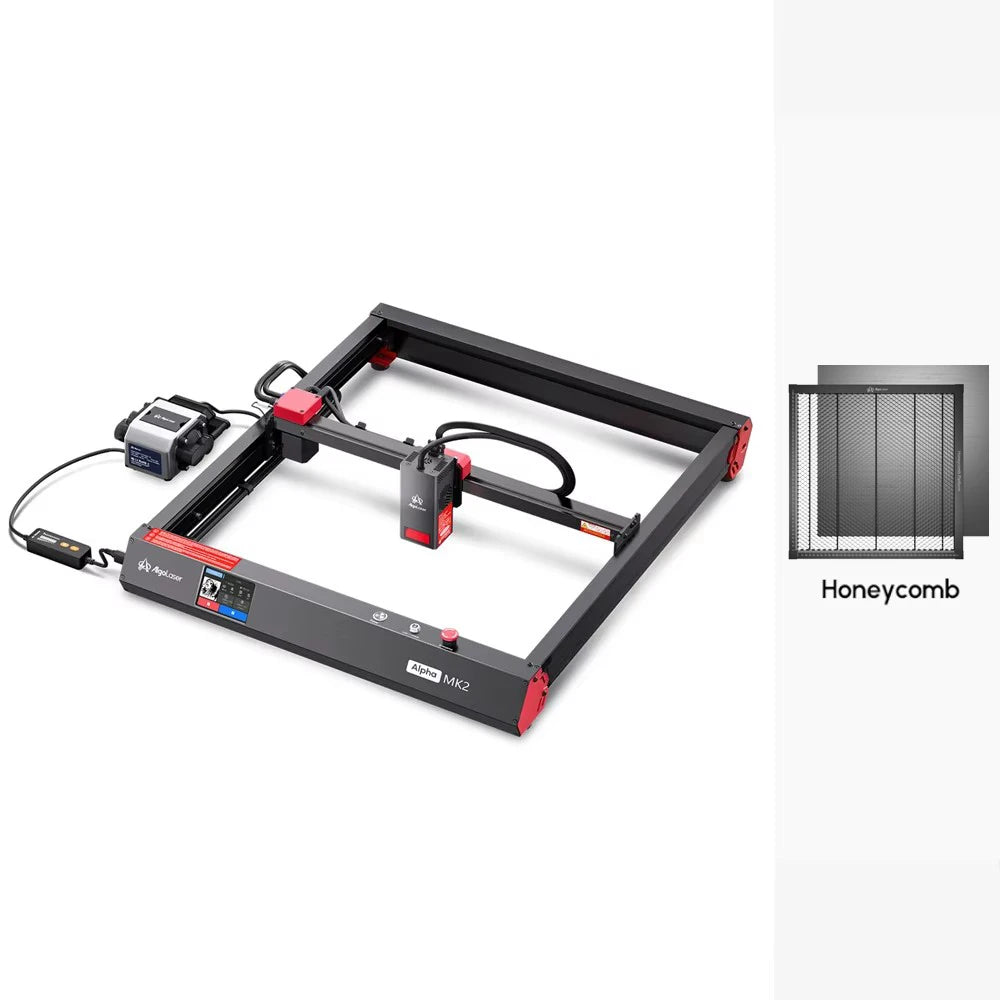

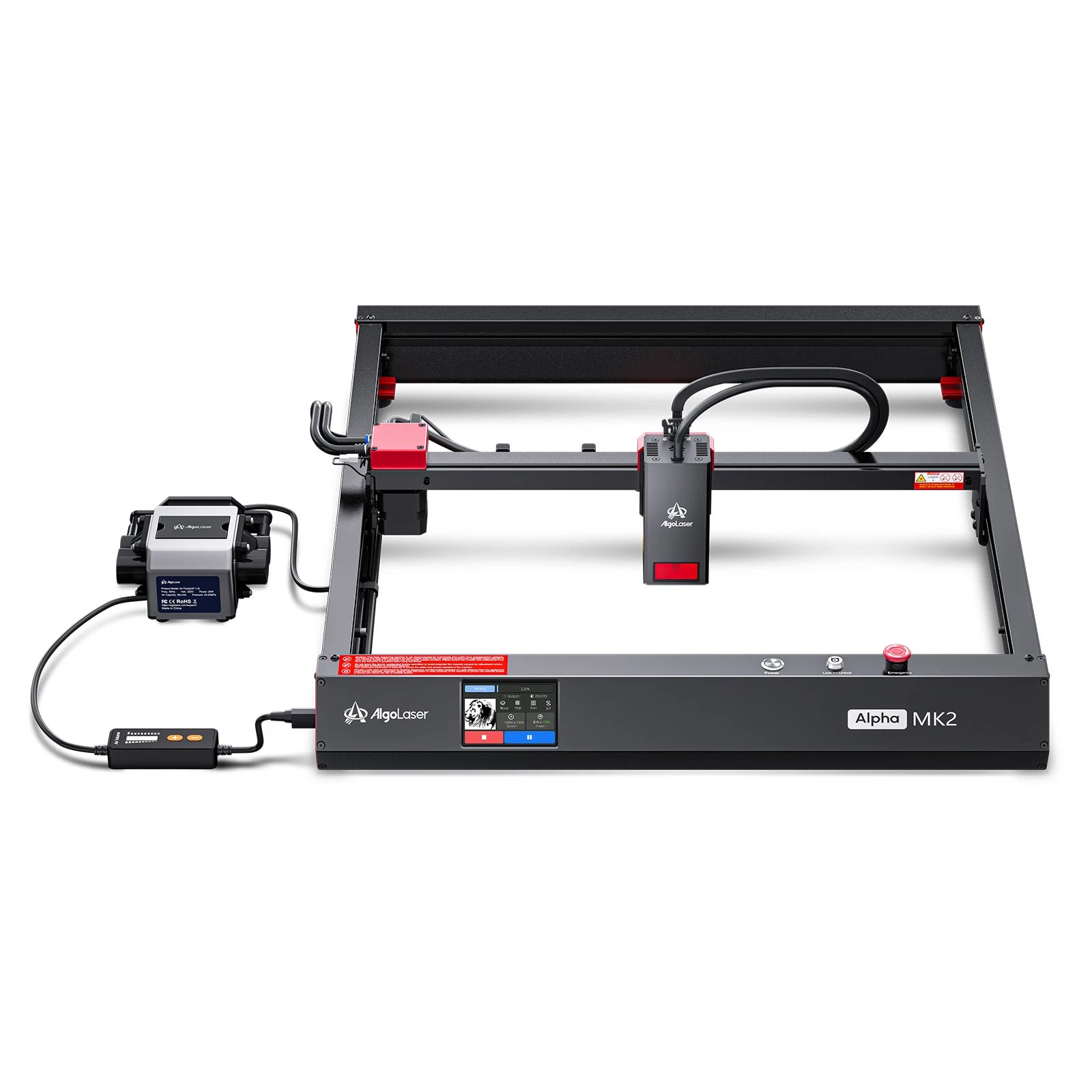

AlgoLaser Alpha MK2 20W Powerful Laser Engraver Set with 3.5'' Touch Screen Air Pump Honeycomb Work Table Rotary Roller

Specification：

Frame Materials:Aluminum Profile

Electric Power:72W

Luminous Power:20W

Wave Length:445±5nm

Control Mode:PWM

Power Rate:S0-S1,000

Engraving Speed:0-20,000MM/Min

Baud Rate:115200 - 921600 (Default: 115200)

Computer OS:Win XP, Win 7, Win 8, Win 10 (LaserGRBL)Mac and Linux (LightBurn)

Control Softwares:LaserGRBL (free), LightBurn (not free), Wifi App

Input Format:BMP, JPG, PNG, NC, DXF, SVG, etc.

Available Materials of Engraving:Wood, Paperboard, Black Acrylic, Leather, Some Plastic(opaque), Power Coated Metal, etc.

Available Materials of Cutting:Paper Board, KT Board, Felt Cloth, Leather, Plywood, Black Acrylic, Rubber, MDF,ets.

Input Voltage:110V-240V (Compatible)

Power Adapter Output:24V / 3A

Operating Temp.:-20℃-50℃

Features:

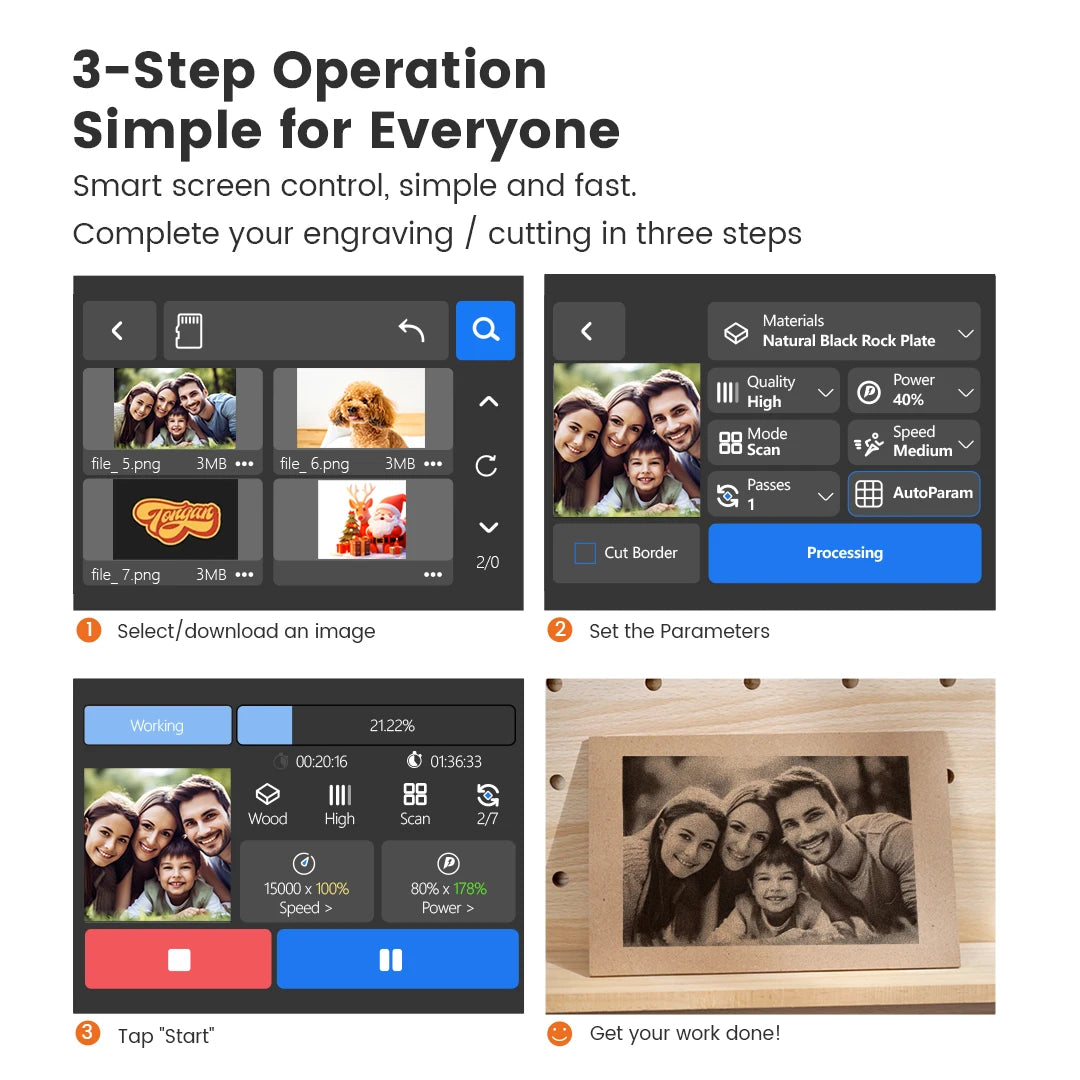

Super Easy to Use

AlgoLaser Alpha MK2 laser engraver machine has a 3.5'' color LCD touch screen and AlgoOS to work alone without computer, which is easy to operate, no need to take time learning software, achieving real offline operation.

Powerful 20W Laser Module

The laser engraving cutter features a powerful 20W optical output laser module equipped with 2nd-gen COS advanced laser technology reduces spot size by 40% (0.12*0.15mm at 100% power), significantly boosting its cutting capacity.

Incredible Cutting Engraving Ability

20,000mm/min speed for 3X faster batch production. Enabling 500+ color engraving on stainless steel. It can cut 0.59" (15mm) pine wood and 0.31" (8mm) acrylic in a single pass, and up to 25mm wood and 35mm acrylic with multiple passes. Additionally, it can precisely cut 0.002" (0.05mm) stainless steel.

Recovery after Interruptions

Alpha MK2 laser engraver can quickly recover after interruptions like unexpected power failures, emergency pauses, or temperary job halts, avoiding redundant engraving tasks, saving materials and time. (Note: Please enable this function before engraving)

7 Safety Functions

①Laser Emission Protection; ②Safety Lock; ③Machine Offset Detection and Protection; ④Machine Tilt Detection and Protection; ⑤USB Connection Detection and Protection; ⑥Voltage and Current Safety Control System; ⑦Emergency Stop Button.

Wide Compatibility

In addition to the built-in Algo OS control screen, the laser engraving machine is also compatible with AlgoLaser APP, LaserGRBL, LightBurn. It supports 2.4G wifi and USB-C links. The engraving file format supports jpg, svg, png, bmp, G code, dwg, etc.

Surports a Variety of Scenes & Materials

For Daily& Business Needs. For Woodworking; Handicraft; Jewelry Design; Event Planning; Signage Production; Decoration; Creative Catering etc. for cutting engraving Wood/ Acrylic/ Mental/ Leather/ Glass/ Ceramic/ Food etc.

Durable & Convenient Structure

The laser engraving machine features a semi - enclosed mainframe, it keeps the internal components safe from dust, and it can be quickly installed in 15 minutes. Detachable magnetic laser cover, and 5X lifespan nylon rollers for 7*24h operation.

Flexible Expansion & Support

Dual CPU motherboard with 5G Wi-Fi, 32GB SD card, and compatibility with 40W laser, rotary chuck, and enclosure accessories;
